Deploying Keycloak on Kubernetes with Amazon RDS

Introduction

In today’s cloud-native era, applications are distributed across containers and clusters, serving thousands of users simultaneously. With this scale comes the need for centralized identity and access management (IAM). Managing authentication and authorization at the application level becomes complex and error-prone.

This is where Keycloak shines.

Keycloak is an open-source Identity and Access Management solution from Red Hat. It provides:

Single Sign-On (SSO)
Identity brokering and social logins (Google, GitHub, etc.)
User federation (LDAP, Active Directory)
Fine-grained role-based access control (RBAC)
OAuth2.0 and OpenID Connect for API security

When deployed on Kubernetes (K8s), Keycloak offers a scalable, cloud-native authentication layer that integrates seamlessly with microservices. Pairing it with Amazon RDS for the database ensures durability, high availability, and simplified database management.

Pioneers in Cloud Consulting & Migration Services

Reduced infrastructural costs
Accelerated application deployment

Get Started

Why Keycloak with Kubernetes?

Kubernetes provides container orchestration, scaling, and resilience. However, it doesn’t natively solve user identity management. Keycloak fills this gap by acting as a centralized authentication hub.

Benefits:

Centralized Authentication – One identity provider for multiple apps and services.
Microservices Security – Secure APIs with JWT tokens issued by Keycloak.
Seamless User Experience – Enable Single Sign-On (SSO).
Scalability – Kubernetes ensures Keycloak can handle increasing load.
Durable Storage – Amazon RDS ensures the database backend is always available and resilient.

Common Use Cases

Multi-App Authentication: Allowing users to log in once and access multiple apps.
API Gateway Security: Protecting microservices using OAuth2/OpenID Connect tokens.
Enterprise Integration: Connecting to LDAP/AD for employee authentication.
Cloud-Native IAM: Centralized identity for Kubernetes-hosted applications.

Step-by-Step Deployment: Keycloak on Kubernetes with Amazon RDS

Step 1: Prerequisites

A Kubernetes cluster (Amazon EKS/AKS/GKE/Minikube).
kubectl and (optionally) helm installed.
An Amazon RDS MariaDB/MySQL instance created, with:
- Database: dev_keycloak
- Username and Password for Keycloak.
- Security group allowing access from K8s worker nodes

Step 2: Create a Namespace

kubectl create namespace keycloak

1	kubectl create namespace keycloak

Step 3: Store Secrets in Kubernetes

Instead of exposing credentials directly in YAML, use a Secret, and follow best practices as below:
Use AWS Secrets Manager for production environments.

Enable automatic secret rotation

Use AWS IAM roles for service accounts (IRSA) for secure access

Never commit secrets to version control

Step 4: Deploy Keycloak with Amazon RDS

Here’s the Deployment manifest:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: keycloak
  namespace: keycloak
  labels:
    app: keycloak
spec:
  replicas: 1
  selector:
    matchLabels:
      app: keycloak
  template:
    metadata:
      labels:
        app: keycloak
    spec:
      containers:
        - name: keycloak
          image: quay.io/keycloak/keycloak:26.0
          args: ["start"]
          ports:
            - name: http
              containerPort: 8080
            - name: https
              containerPort: 8443
          env:
            - name: KC_DB
              value: "mariadb"
            - name: KC_DB_USERNAME
              valueFrom:
                secretKeyRef:
                  name: keycloak-secrets
                  key: db-username
            - name: KC_DB_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: keycloak-secrets
                  key: db-password
            - name: KC_DB_URL
              value: "jdbc:mariadb://rds-hwbefjvvh/wheeb "

            - name: KC_HOSTNAME
              value: "hostname.net"
            - name: KEYCLOAK_ADMIN
              valueFrom:
                secretKeyRef:
                  name: keycloak-secrets
                  key: admin-username
            - name: KEYCLOAK_ADMIN_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: keycloak-secrets
                  key: admin-password

            - name: KC_HOSTNAME_STRICT
              value: "true"
            - name: KC_HTTP_ENABLED
              value: "true"
            - name: KC_PROXY_HEADERS
              value: "xforwarded"
            - name: KC_HOSTNAME_STRICT_HTTPS
              value: "true"
            - name: KC_DB_POOL_INITIAL_SIZE
              value: "5"
            - name: KC_DB_POOL_MIN_SIZE
              value: "5"
            - name: KC_DB_POOL_MAX_SIZE
              value: "20"
            - name: KC_TRANSACTION_XA_ENABLED
              value: "false"
            - name: KC_PROXY
              value: "edge"

apiVersion: apps/v1

kind: Deployment

metadata:

namespace: keycloak

labels:

app: keycloak

spec:

replicas: 1

selector:

matchLabels:

app: keycloak

template:

metadata:

labels:

app: keycloak

spec:

containers:

- name: keycloak

image: quay.io/keycloak/keycloak:26.0

args: ["start"]

ports:

- name: http

containerPort: 8080

- name: https

containerPort: 8443

env:

- name: KC_DB

value: "mariadb"

- name: KC_DB_USERNAME

valueFrom:

secretKeyRef:

key: db-username

- name: KC_DB_PASSWORD

valueFrom:

secretKeyRef:

key: db-password

- name: KC_DB_URL

value: "jdbc:mariadb://rds-hwbefjvvh/wheeb "

- name: KC_HOSTNAME

value: "hostname.net"

- name: KEYCLOAK_ADMIN

valueFrom:

secretKeyRef:

key: admin-username

- name: KEYCLOAK_ADMIN_PASSWORD

valueFrom:

secretKeyRef:

key: admin-password

- name: KC_HOSTNAME_STRICT

value: "true"

- name: KC_HTTP_ENABLED

value: "true"

- name: KC_PROXY_HEADERS

value: "xforwarded"

- name: KC_HOSTNAME_STRICT_HTTPS

value: "true"

- name: KC_DB_POOL_INITIAL_SIZE

value: "5"

- name: KC_DB_POOL_MIN_SIZE

value: "5"

- name: KC_DB_POOL_MAX_SIZE

value: "20"

- name: KC_TRANSACTION_XA_ENABLED

value: "false"

- name: KC_PROXY

value: "edge"

Step 5: Expose Keycloak Service

apiVersion: v1
kind: Service
metadata:
  name: keycloak
  namespace: keycloak
spec:
  type: ClusterIP
  ports:
    - name: http
      port: 8080
      targetPort: 8080
    - name: https
      port: 8443
      targetPort: 8443
  selector:
    app: keycloak

apiVersion: v1

kind: Service

metadata:

namespace: keycloak

spec:

type: ClusterIP

ports:

- name: http

port: 8080

targetPort: 8080

- name: https

port: 8443

targetPort: 8443

selector:

app: keycloak

keycloak2

Step 6: Configure Ingress (with ALB on AWS)

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: keycloak-ingress
  namespace: keycloak
  annotations:
    kubernetes.io/ingress.class: alb
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS":443}]'
    alb.ingress.kubernetes.io/target-type: ip
spec:
  rules:
    - host: hostname
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: keycloak
                port:
                  number: 8080

apiVersion: networking.k8s.io/v1

kind: Ingress

metadata:

namespace: keycloak

annotations:

kubernetes.io/ingress.class: alb

alb.ingress.kubernetes.io/scheme: internet-facing

alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS":443}]'

alb.ingress.kubernetes.io/target-type: ip

spec:

rules:

- host: hostname

http:

paths:

- path: /

pathType: Prefix

backend:

service:

port:

number: 8080

Make sure DNS points to the ALB.

Step 7: Validate Deployment

Check pods:

kubectl get pods -n keycloak

Logs:

kubectl logs -n keycloak deploy/keycloak

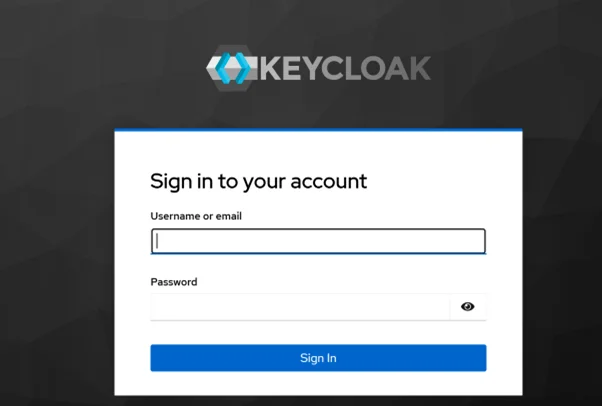

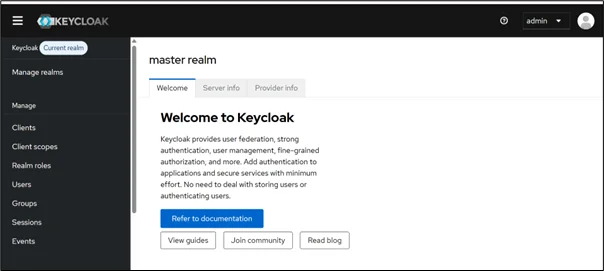

Access in browser:

https://hostname.net

keycloak4

keycloak5

Conclusion

Keycloak provides an open-source way to handle authentication and authorization across modern applications. Deploying it on Kubernetes ensures scalability and resilience, while using Amazon RDS as the backend database guarantees durability and reliability.

Whether you need SSO across apps, secure APIs with OAuth2, or integration with enterprise identity providers, Keycloak on Kubernetes with Amazon RDS is a production-ready solution for modern AWS IAM.

Drop a query if you have any questions regarding Keycloak and we will get back to you quickly.

Empowering organizations to become ‘data driven’ enterprises with our Cloud experts.

Reduced infrastructure costs
Timely data-driven decisions

Get Started

About CloudThat

CloudThat is an award-winning company and the first in India to offer cloud training and consulting services worldwide. As a Microsoft Solutions Partner, AWS Advanced Tier Training Partner, and Google Cloud Platform Partner, CloudThat has empowered over 850,000 professionals through 600+ cloud certifications winning global recognition for its training excellence including 20 MCT Trainers in Microsoft’s Global Top 100 and an impressive 12 awards in the last 8 years. CloudThat specializes in Cloud Migration, Data Platforms, DevOps, IoT, and cutting-edge technologies like Gen AI & AI/ML. It has delivered over 500 consulting projects for 250+ organizations in 30+ countries as it continues to empower professionals and enterprises to thrive in the digital-first world.

FAQs

1. Can Keycloak replace Auth0 or Okta?

ANS: – Yes. Keycloak is a free, open-source alternative to SaaS identity providers like Auth0/Okta. The difference is that you manage the infrastructure, scaling, and upgrades.

2. Why use Amazon RDS instead of the default H2 database?

ANS: – H2 is only for development. For production, Keycloak needs a persistent, reliable database. Amazon RDS ensures durability, high availability, and automated backups.
