Optimizing PostgreSQL Queries with the Right Index Type

Introduction

PostgreSQL is one of the most powerful open-source relational databases and is known for its advanced indexing capabilities. Indexes significantly enhance query performance by reducing the number of rows scanned. However, choosing the right indexing strategy is crucial for optimal database performance. PostgreSQL provides various indexing methods, each suited for different queries and data structures.

In this blog, we will explore four major indexing types in PostgreSQL:

B-Tree Index
GIN (Generalized Inverted Index)
GiST (Generalized Search Tree)
BRIN (Block Range INdex)

We will discuss how they work, their use cases, and when to use them for efficient query performance.

Pioneers in Cloud Consulting & Migration Services

Reduced infrastructural costs
Accelerated application deployment

Get Started

B-Tree Index

How It Works

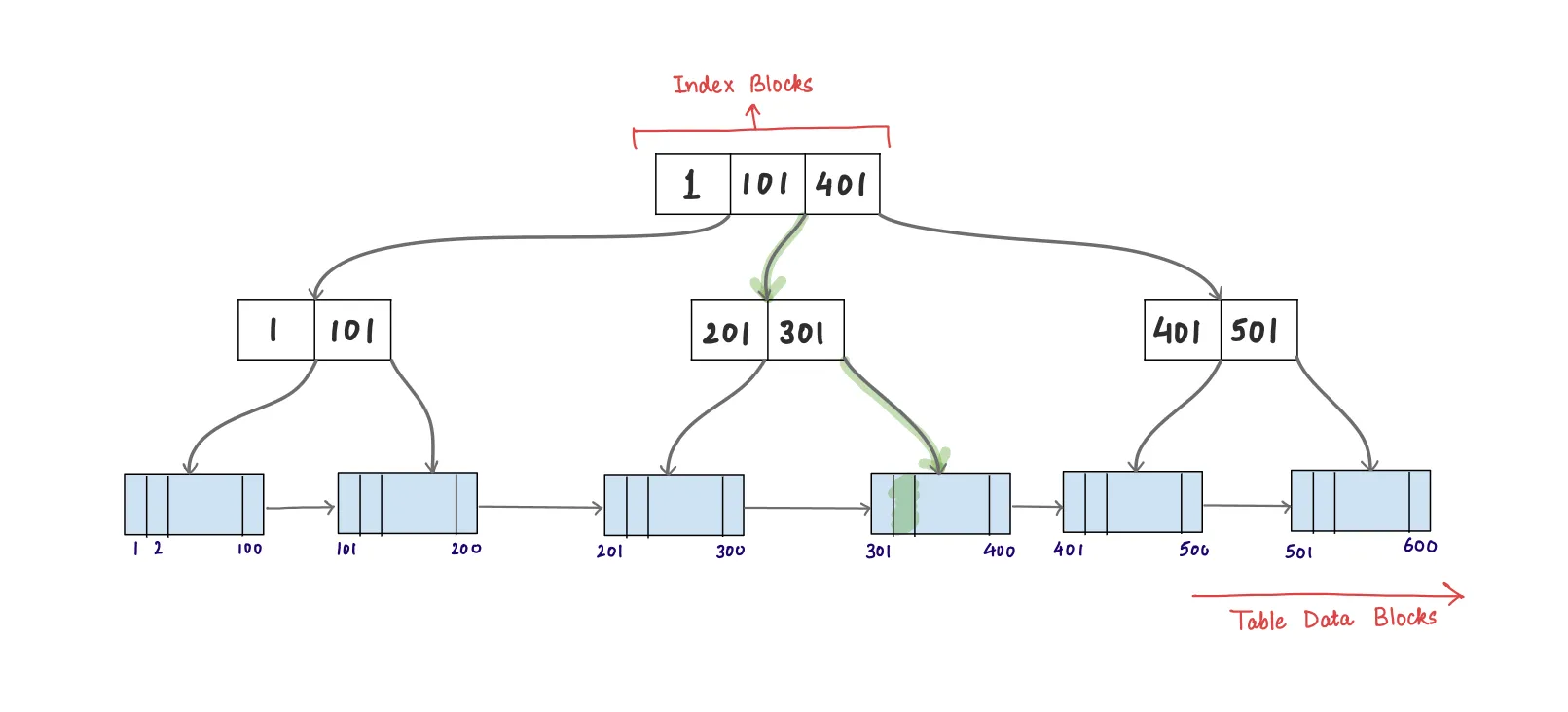

The B-Tree (Balanced Tree) index is the default and most widely used index type in PostgreSQL. It stores data in a self-balancing tree structure, ensuring logarithmic time complexity (O(log n)) for search operations.

sql

Image Source

B-Trees work well for queries that involve comparisons such as:

Equality (=)
Range (<, >, <=, >=)
Sorting (ORDER BY)

Use Cases

Searching for exact matches (WHERE column = value)
Range queries (BETWEEN, >=, <=)
Sorting queries (ORDER BY column)
Common indexing needs in transactional databases

Example Usage

```sql
CREATE INDEX idx_users_email ON users (email);
```
This index speeds up email-based searches:
```sql
SELECT * FROM users WHERE email = 'test@example.com';
```

```sql

CREATE INDEX idx_users_email ON users (email);

```

This index speeds up email-based searches:

```sql

SELECT * FROM users WHERE email = 'test@example.com';

```

When NOT to Use B-Trees

When querying JSON, arrays, or full-text search data
For high-cardinality data where specialized indexes (GIN, GiST) perform better

GIN (Generalized Inverted Index)

How It Works

The GIN (Generalized Inverted Index) is designed to index composite data types such as arrays, JSONB, and full-text search fields. It maintains an inverted index structure, mapping multiple keys to corresponding row locations.

Use Cases

Full-text search (tsvector)
JSONB data queries
Array-based searches (@>, <@, &&)
Searching for multiple values efficiently

Example Usage

Creating a GIN index on a JSONB column:
```sql
CREATE INDEX idx_orders_data ON orders USING GIN (data);
```
This index accelerates queries like:
```sql
SELECT * FROM orders WHERE data @> '{"status": "shipped"}';
```

Creating a GIN index on a JSONB column:

```sql

CREATE INDEX idx_orders_data ON orders USING GIN (data);

```

This index accelerates queries like:

```sql

SELECT * FROM orders WHERE data @> '{"status": "shipped"}';

```

When NOT to Use GIN

For single-value lookups, as B-Trees are more efficient
When dataset modifications (INSERT/UPDATE/DELETE) are frequent since GIN indexes have a higher maintenance cost

GiST (Generalized Search Tree)

How It Works

The GiST (Generalized Search Tree) index is a flexible, balanced tree structure supporting various complex queries. Unlike B-Trees, GiST allows for indexing non-exact matching data, such as geometric and text search operations.

Use Cases

Geospatial data (PostGIS)
Full-text search
Fuzzy text matching (pg_trgm extension)
Hierarchical data (e.g., trees and graphs)

Example Usage

Creating a GiST index for full-text search:
```sql
CREATE INDEX idx_articles_title ON articles USING GiST (to_tsvector('english', title));
```
Querying the index:
```sql
SELECT * FROM articles WHERE to_tsvector('english', title) @@ to_tsquery('database');
```

Creating a GiST index for full-text search:

```sql

CREATE INDEX idx_articles_title ON articles USING GiST (to_tsvector('english', title));

```

Querying the index:

```sql

SELECT * FROM articles WHERE to_tsvector('english', title) @@ to_tsquery('database');

```

When NOT to Use GiST

For equality or range-based queries (B-Trees perform better)
When using JSONB or arrays (GIN is preferable)

BRIN (Block Range INdex)

How It Works

The BRIN (Block Range INdex) is optimized for large datasets where data is stored sequentially. Instead of indexing individual rows, BRIN indexes blocks of data, storing metadata about value ranges within each block.

Use Cases

Very large tables (millions/billions of rows)
Time-series data (logs, IoT data)
Append-only tables with sequentially increasing values

Example Usage

Creating a BRIN index for a timestamp column:
```sql
CREATE INDEX idx_logs_timestamp ON logs USING BRIN (event_time);
```
This helps speed up range queries like:
```sql
SELECT * FROM logs WHERE event_time BETWEEN '2025-01-01' AND '2025-01-31';
```

Creating a BRIN index for a timestamp column:

```sql

CREATE INDEX idx_logs_timestamp ON logs USING BRIN (event_time);

```

This helps speed up range queries like:

```sql

SELECT * FROM logs WHERE event_time BETWEEN '2025-01-01' AND '2025-01-31';

```

When NOT to Use BRIN

When data is frequently updated or unsorted
For small tables, as B-Trees provide better performance

Conclusion

Choosing the right indexing strategy is crucial for optimizing PostgreSQL performance. While B-Trees are the default and most commonly used index type, specialized indexes like GIN, GiST, and BRIN offer better performance for specific use cases such as JSONB queries, full-text search, and large datasets.

Key Takeaways:

Use B-Trees for general-purpose queries and range lookups.
Use GIN to index JSONB, arrays, and full-text search.
Use GiST for geospatial and similarity-based searches.
Use BRIN for massive, sequentially stored data.

You can significantly improve query performance and reduce database overhead by carefully selecting the right index type.

Drop a query if you have any questions regarding PostgreSQL and we will get back to you quickly.

Empowering organizations to become ‘data driven’ enterprises with our Cloud experts.

Reduced infrastructure costs
Timely data-driven decisions

Get Started

About CloudThat

CloudThat is an award-winning company and the first in India to offer cloud training and consulting services worldwide. As a Microsoft Solutions Partner, AWS Advanced Tier Training Partner, and Google Cloud Platform Partner, CloudThat has empowered over 850,000 professionals through 600+ cloud certifications winning global recognition for its training excellence including 20 MCT Trainers in Microsoft’s Global Top 100 and an impressive 12 awards in the last 8 years. CloudThat specializes in Cloud Migration, Data Platforms, DevOps, IoT, and cutting-edge technologies like Gen AI & AI/ML. It has delivered over 500 consulting projects for 250+ organizations in 30+ countries as it continues to empower professionals and enterprises to thrive in the digital-first world.

FAQs

1. How does PostgreSQL decide which index to use for a query?

ANS: – PostgreSQL’s query planner analyzes available indexes and selects the most efficient ones based on query conditions, data distribution, and index type. It uses EXPLAIN ANALYZE to determine whether an index scan is faster than a sequential scan.

2. Can multiple indexes be used in a single query?

ANS: – Yes, PostgreSQL can use multiple indexes in a single query, especially when dealing with multi-column filters or bitmap index scans, where results from multiple indexes are combined to speed up retrieval.
