Scalable Real Time Communication Using AWS WebSocket APIs and AWS Lambda

Introduction

Real-time communication has become a cornerstone of modern web applications in today’s digital landscape. From instant messaging platforms to live collaborative tools, users expect immediate responses and seamless interactions. Amazon API Gateway WebSocket APIs and AWS Lambda provide a powerful serverless solution for building scalable real-time applications without the complexity of managing infrastructure.

Understanding WebSocket Technology

WebSocket is a communication protocol that enables full-duplex communication channels over a single TCP connection. Unlike traditional HTTP requests that follow a request-response pattern, WebSocket connections remain open, allowing the client and server to send messages independently at any time.

Key Advantages of WebSocket

• Bidirectional Communication: Both client and server can initiate message exchanges
• Low Latency: Eliminates the overhead of establishing new connections for each message
• Real-time Updates: Instant message delivery without polling mechanisms
• Reduced Server Load: Maintains persistent connections instead of frequent HTTP requests

Amazon API Gateway WebSocket API

Amazon API Gateway WebSocket APIs provide a fully managed service for handling WebSocket connections at scale. The service automatically manages connection lifecycle, message routing, and integration with backend services like AWS Lambda.

Core Components

• Routes: Define how to handle incoming messages.
  – $connect: Triggered when a client establishes a WebSocket connection
  – $disconnect: Triggered when a client closes the connection
  – $default Routes: Handle specific message types (e.g., sendMessage)
  • Integrations: Connect routes to backend services such as Lambda functions, HTTP endpoints, or other AWS services.
  • Stages: Represent deployment environments (development, staging, production) with unique endpoints.

Steps to create a WebSocket API in Amazon API Gateway

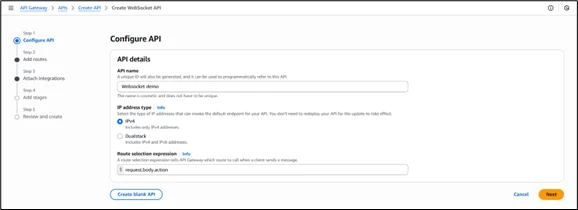

Step 1: Configuring the API

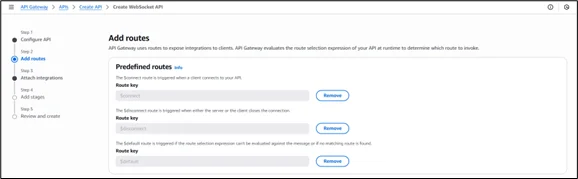

Step 2: Adding the Routes

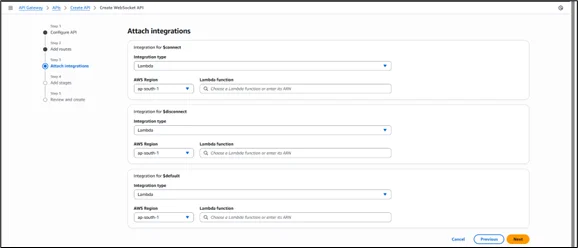

Step 3: Attaching the AWS Lambda

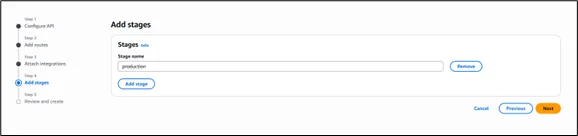

Step 4: Adding the stages

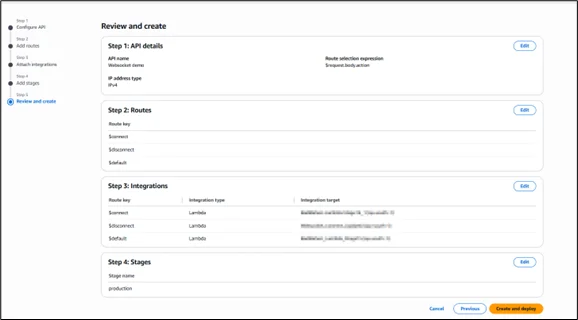

Step 5: Deploying the API

AWS Lambda Integration Architecture

The integration between WebSocket API and Lambda creates a serverless real-time messaging system with the following flow:

1. Client Connection: The $connect route triggers a Lambda function.
   Connection Storage: AWS Lambda stores the connection ID in a database (commonly Amazon DynamoDB).
2. Message Processing: Custom routes handle incoming messages via AWS Lambda functions.
3. Message Broadcasting: AWS Lambda retrieves active connections and sends messages to clients.
4. Connection Cleanup: The $disconnect route removes connection IDs when clients disconnect.

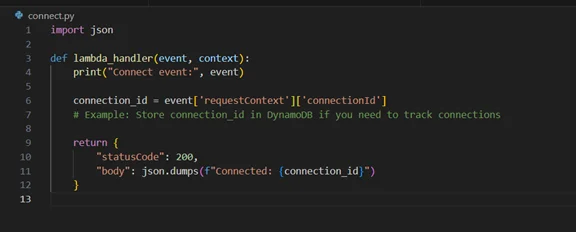

Step 1: Connect Function

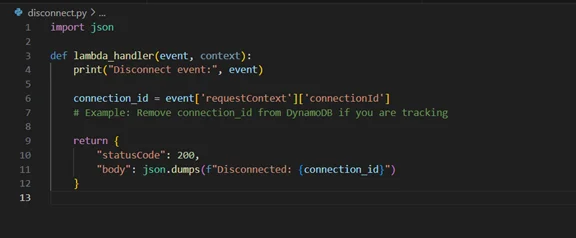

Step 2: Disconnect Function

Step 3: Default Function

Database Design for Connection Management

Effective connection management requires a robust database design. DynamoDB is the preferred choice for storing WebSocket connections due to its scalability, low latency, serverless nature, and pay-per-request pricing.

Connection Table Structure:
• Primary Key: connectionId (unique identifier for each WebSocket connection)
• Optional Attributes: userId, timestamp, metadata for enhanced functionality

Step 1: Amazon DynamoDB Table

Security Considerations

Security is a critical aspect of real-time applications:

• Authentication and Authorization: Use query string parameters, Lambda authorizers, or Amazon Cognito.
• Input Validation: Always validate incoming messages to prevent malicious payloads.
• Rate Limiting: Protect against message flooding, resource exhaustion, and denial-of-service attacks.

Monitoring and Observability

Use Amazon CloudWatch for metrics such as active connections, message volume, error rates, and latency. Implement logging for connection events, message processing, and errors. Configure alarms for unusual patterns and performance degradation.

Use Cases and Applications

• Real-time chat applications (messaging platforms, customer support, collaboration tools)
• Live data streaming (stock prices, sports updates, IoT sensor data)
• Collaborative platforms (document editing, whiteboard sharing, code collaboration)
• Gaming applications (multiplayer interactions, game state synchronization, leaderboards)

Best Practices

• Manage connections and clean up properly.
• Implement robust error handling with retries.
• Design for horizontal scaling and traffic spikes.
• Test with multiple connections and varied network conditions.

Deployment Considerations

• Use Infrastructure as Code (AWS CDK, CloudFormation) for consistent deployments.
• Maintain separate environments (dev, staging, prod).
• Integrate CI/CD pipelines for automated deployments and testing.

Troubleshooting Common Issues

• Connection Problems: Authentication failures, network issues, and rate limits.
• Message Delivery Issues: Verify connection states, message format, and logs.
• Performance Issues: Optimize connection pools, database queries, and AWS Lambda code.

Future Enhancements

• Implement message persistence and offline delivery.
• Add advanced routing logic.
• Integrate with Amazon SNS, Amazon SQS, or Amazon ElastiCache for richer functionality.

Conclusion

Amazon API Gateway WebSocket APIs with AWS Lambda provide a scalable, secure, cost-effective solution for real-time applications.

With best practices in place for security, monitoring, and optimization, this architecture ensures reliability and efficiency for growing user demands.

Drop a query if you have any questions regarding Amazon API Gateway WebSocket and we will get back to you quickly.
