A Guide to Exposing Kubernetes Services with Gateway API on Amazon EKS

Introduction

The Gateway API is a family of APIs that provide dynamic infrastructure provisioning and advanced traffic routing. Make network services available by using an extensible, role-oriented, protocol-aware configuration mechanism. The Gateway API is an add-on containing various API types that provide dynamic infrastructure provisioning and advanced traffic routing. It is the successor of Ingress.

Pioneers in Cloud Consulting & Migration Services

Reduced infrastructural costs
Accelerated application deployment

Get Started

Solution Overview

We will set up the Gateway API in Amazon EKS and configure an Amazon VPC network for establishing service-to-service communication.

Process involved:

Installing Amazon EKS pod identity association for access to AWS services.
Installing Gateway API CRDs.
Installing the Gateway API controller in Amazon EKS.
Setting up required permissions
Setting up the gateway and HTTP route core components for the gateway API.

Amazon VPC Lattice: Amazon VPC Lattice is an AWS service that provides a unified, managed framework for connecting, securing, and monitoring services across multiple VPCs and accounts. It simplifies application networking by handling service discovery, traffic routing, and access control, allowing developers to focus on building applications instead of managing complex network configurations.

Prerequisites

Amazon EKS Cluster: Set up one Amazon EKS cluster with the necessary permissions to deploy the Gateway API controller and the required CRDs.

Steps

Install Gateway CRDs.

Install the necessary CRD required for the Gateway API to run on any Kubernetes cluster by running the command below.

kubectl apply --server-side -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.4.0/standard-install.yaml

1	kubectl apply --server-side -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.4.0/standard-install.yaml

Verify CRD installation.

kubectl get crd | grep gateway.networking.k8s.io

1	kubectl get crd \| grep gateway.networking.k8s.io

step1

2. Configure the security group

Allow the security group of node groups to allow traffic from the VPC lattice. Run the command below to obtain the security group ID of the node group in your Amazon EKS cluster.

aws eks describe-cluster --name <cluster-name> --output json | jq -r '.cluster.resourcesVpcConfig.clusterSecurityGroupId'

1	aws eks describe-cluster --name <cluster-name> --output json \| jq -r '.cluster.resourcesVpcConfig.clusterSecurityGroupId'

Allow communication from the Amazon VPC lattice for both IPv6 and IPv4.

Allow traffic from the two sources.

step2

3. Set up AWS IAM permissions

Create a policy in AWS IAM that will invoke the Gateway API controller. Policy should include the following permissions.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "vpc-lattice:*",
                "ec2:DescribeVpcs",
                "ec2:DescribeSubnets",
                "ec2:DescribeTags",
                "ec2:DescribeSecurityGroups",
                "logs:CreateLogDelivery",
                "logs:GetLogDelivery",
                "logs:DescribeLogGroups",
                "logs:PutResourcePolicy",
                "logs:DescribeResourcePolicies",
                "logs:UpdateLogDelivery",
                "logs:DeleteLogDelivery",
                "logs:ListLogDeliveries",
                "tag:GetResources",
                "firehose:TagDeliveryStream",
                "s3:GetBucketPolicy",
                "s3:PutBucketPolicy",
                "tag:TagResources",
                "tag:UntagResources"
            ],
            "Resource": "*"
        },
        {
            "Effect" : "Allow",
            "Action" : "iam:CreateServiceLinkedRole",
            "Resource" : "arn:aws:iam::*:role/aws-service-role/vpc-lattice.amazonaws.com/AWSServiceRoleForVpcLattice",
            "Condition" : {
                "StringLike" : {
                    "iam:AWSServiceName" : "vpc-lattice.amazonaws.com"
                }
            }
        },
        {
            "Effect" : "Allow",
            "Action" : "iam:CreateServiceLinkedRole",
            "Resource" : "arn:aws:iam::*:role/aws-service-role/delivery.logs.amazonaws.com/AWSServiceRoleForLogDelivery",
            "Condition" : {
                "StringLike" : {
                    "iam:AWSServiceName" : "delivery.logs.amazonaws.com"
                }
            }
        }
    ]
}

{

"Version": "2012-10-17",

"Statement": [

{

"Effect": "Allow",

"Action": [

"vpc-lattice:*",

"ec2:DescribeVpcs",

"ec2:DescribeSubnets",

"ec2:DescribeTags",

"ec2:DescribeSecurityGroups",

"logs:CreateLogDelivery",

"logs:GetLogDelivery",

"logs:DescribeLogGroups",

"logs:PutResourcePolicy",

"logs:DescribeResourcePolicies",

"logs:UpdateLogDelivery",

"logs:DeleteLogDelivery",

"logs:ListLogDeliveries",

"tag:GetResources",

"firehose:TagDeliveryStream",

"s3:GetBucketPolicy",

"s3:PutBucketPolicy",

"tag:TagResources",

"tag:UntagResources"

"Resource": "*"

{

"Effect" : "Allow",

"Action" : "iam:CreateServiceLinkedRole",

"Resource" : "arn:aws:iam::*:role/aws-service-role/vpc-lattice.amazonaws.com/AWSServiceRoleForVpcLattice",

"Condition" : {

"StringLike" : {

"iam:AWSServiceName" : "vpc-lattice.amazonaws.com"

}

{

"Effect" : "Allow",

"Action" : "iam:CreateServiceLinkedRole",

"Resource" : "arn:aws:iam::*:role/aws-service-role/delivery.logs.amazonaws.com/AWSServiceRoleForLogDelivery",

"Condition" : {

"StringLike" : {

"iam:AWSServiceName" : "delivery.logs.amazonaws.com"

}

]

}

4. Create the aws-application-networking-system namespace

Run the command to create the namespace, as the Gateway API controller is created by default in the same namespace. To modify, you can create a different namespace and modify the YAML for the Gateway API controller, changing the namespace there.

kubectl apply -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-namesystem.yaml

1	kubectl apply -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-namesystem.yaml

5. Set up pod identity association

Install the addon in Amazon EKS for pod identity association and provide the necessary permissions.

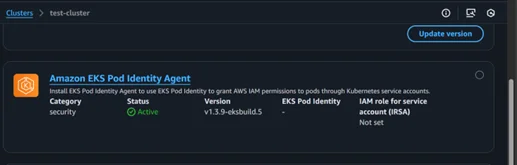

step5

Run the command to check if the pod identity Daemon Set is running or not kubectl get pods -n kube-system | grep ‘eks-pod-identity-agent’
Create one service account with the name gateway-api-controller in the aws-application-networking-system
Create a trust policy for the AWS IAM role

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AllowEksAuthToAssumeRoleForPodIdentity",
            "Effect": "Allow",
            "Principal": {
                "Service": "pods.eks.amazonaws.com"
            },
            "Action": [
                "sts:AssumeRole",
                "sts:TagSession"
            ]
        }
    ]
}

{

"Version": "2012-10-17",

"Statement": [

{

"Sid": "AllowEksAuthToAssumeRoleForPodIdentity",

"Effect": "Allow",

"Principal": {

"Service": "pods.eks.amazonaws.com"

"Action": [

"sts:AssumeRole",

"sts:TagSession"

]

}

]

}

Now, create the AWS IAM role, attach the trust policy (iv) and AWS IAM policy (Step 3) that we created earlier to the AWS IAM role.
Create the pod identity association either by using the CLI or by creating it from the console.

aws eks create-pod-identity-association --cluster-name <EKS_CLUSTER_NAME> --role-arn <VPCLatticeControllerIAMRoleArn> --namespace aws-application-networking-system --service-account gateway-api-controller

1	aws eks create-pod-identity-association --cluster-name <EKS_CLUSTER_NAME> --role-arn <VPCLatticeControllerIAMRoleArn> --namespace aws-application-networking-system --service-account gateway-api-controller

To create from the console, click on the Access tab in the Amazon EKS console, then click on “Create” in Pod Identity Association.

6. Deploy the controller

Deploy the controller using the command below.

kubectl apply -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-v1.1.6.yaml

1	kubectl apply -f https://raw.githubusercontent.com/aws/aws-application-networking-k8s/main/files/controller-installation/deploy-v1.1.6.yaml

Verify whether the controller has been deployed successfully.

kubectl get deployment gateway-api-controller -n aws-application-networking-system

1	kubectl get deployment gateway-api-controller -n aws-application-networking-system

7. Create the Gateway Class

apiVersion: gateway.networking.k8s.io/v1beta1
kind: GatewayClass
metadata:
  name: amazon-vpc-lattice
spec:
  controllerName: application-networking.k8s.aws/gateway-api-controller

apiVersion: gateway.networking.k8s.io/v1beta1

kind: GatewayClass

metadata:

spec:

controllerName: application-networking.k8s.aws/gateway-api-controller

8. Create Gateway

With the AWS Gateway API Controller (amazon-vpc-lattice GatewayClass), Gateway/HTTPRoute are reconciled into Amazon VPC Lattice resources. The controller creates a Service Network in Amazon VPC Lattice and associates your Amazon VPC with it. That enables service-to-service (east-west) communication via Lattice Services/Target Groups. (It’s not “inside a single VPC”, it’s a Lattice Service Network that can span multiple associated VPCs.)

apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
  name: demo-gw
  namespace: demo
spec:
  gatewayClassName: amazon-vpc-lattice   # same as installed gateway class
  listeners:
    - name: http
      protocol: HTTP
      port: 80

apiVersion: gateway.networking.k8s.io/v1beta1

kind: Gateway

metadata:

namespace: demo

spec:

gatewayClassName: amazon-vpc-lattice # same as installed gateway class

listeners:

- name: http

protocol: HTTP

port: 80

Check the gateway, it should be Programmed True.

Gateway will create the service network in VPC-Lattice. Check from the console.

Note: Sometimes, the service network will not be created automatically via the gateway. Create manually, if necessary, using the console or CLI, and associate the Amazon VPC.

9. Create HTTP Route

apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
  name: echo-route
  namespace: demo
spec:
  parentRefs:
    - name: demo-gw
      sectionName: http
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: echo-svc  # ClusterIP service for your application
          port: 80

apiVersion: gateway.networking.k8s.io/v1beta1

kind: HTTPRoute

metadata:

namespace: demo

spec:

parentRefs:

- name: demo-gw

sectionName: http

rules:

- matches:

- path:

type: PathPrefix

value: /

backendRefs:

- name: echo-svc # ClusterIP service for your application

port: 80

The HTTP Route will create a lattice service check in the console to verify whether it has been created or not.

10. Get the lattice domain.

Run the command below to obtain the lattice domain.

kubectl -n demo get httproute echo-route  -o jsonpath='{.metadata.annotations.application-networking\.k8s\.aws/lattice-assigned-domain-name}{"\n"}'

1	kubectl -n demo get httproute echo-route -o jsonpath='{.metadata.annotations.application-networking\.k8s\.aws/lattice-assigned-domain-name}{"\n"}'

You will get the output like below

11. Test the application.

From any Amazon EC2 instance within the same Amazon VPC, test by running the curl command.

"curl -i http://echo-route-demo-0f9ccd054fa71b796.7d67968.vpc-lattice-svcs.us-east-1.on.aws/"

1	"curl -i http://echo-route-demo-0f9ccd054fa71b796.7d67968.vpc-lattice-svcs.us-east-1.on.aws/"

You will get the output from your application.

step11

Key Benefits

Service-to-service (east–west): With the Gateway API Controller on Amazon EKS, Gateway API maps to Amazon VPC Lattice for secure Service to Service across namespaces and even across VPCs/accounts in the same region.
Ingress evolution: The Gateway API is the successor to Ingress, offering more expressive support (HTTP/gRPC/TCP/TLS), portability via Gateway Class, and support for policies, cross-namespace references, and both north–south (ALB) and east–west (Lattice) scenarios.

Conclusion

Using the Gateway API, we can easily solve service-to-service communication problems in Amazon EKS. Gateway API solves advanced routing problems and provides more security features than ingress.

Drop a query if you have any questions regarding Gateway API and we will get back to you quickly.
