Centralized Logging for Amazon EKS Using OpenSearch Service

Introduction

In modern Kubernetes environments, applications generate a large volume of logs across pods, nodes, containers, and services. When workloads run on Amazon EKS, a centralized logging solution becomes essential for troubleshooting issues, monitoring application behavior, detecting failures, and improving operational visibility.

Amazon OpenSearch Service provides a powerful, managed platform for storing, searching, analyzing, and visualizing logs at scale. By sending Amazon EKS logs to OpenSearch, teams can easily query application logs, create dashboards, identify errors, and monitor production workloads from a single place.

Pioneers in Cloud Consulting & Migration Services

Reduced infrastructural costs
Accelerated application deployment

Get Started

Solution Overview

In this blog, we will configure centralized logging for workloads running on Amazon EKS by sending container logs to Amazon OpenSearch Service.

The setup uses Fluent Bit, deployed as a DaemonSet with Helm. Fluent Bit collects logs from all running pods in the Amazon EKS cluster, enriches them with Kubernetes metadata, and forwards them to Amazon OpenSearch Service. Once logs are available in OpenSearch, they can be searched and visualized using OpenSearch Dashboards.

The overall process includes:

Using existing workloads running on Amazon EKS.
Installing Fluent Bit using Helm to collect and forward container logs.
Configuring IAM permissions and OpenSearch role mapping.
Creating an index pattern in OpenSearch Dashboards.
Viewing EKS pod logs in OpenSearch Dashboards.

Prerequisites

An existing Amazon EKS cluster.
An Amazon OpenSearch Service domain.
kubectl is configured to access the Amazon EKS cluster.
Required AWS IAM permissions to create AWS IAM policies, AWS IAM roles, and service accounts.
Network connectivity between the Amazon EKS worker nodes and the Amazon OpenSearch Service domain.

Steps

Create a namespace for logging

kubectl create ns logging

1	kubectl create ns logging

Create an AWS IAM policy for OpenSearch write access

Fluent Bit needs permission to write logs into OpenSearch. Create one AWS IAM role by name fluent-bit and attach the below policy

{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "AllowWriteOpenSearch",
"Effect": "Allow",
"Action": [
"es:ESHttpPost",
"es:ESHttpPut",
"es:ESHttpGet",
"es:ESHttpHead"
],
"Resource": "arn:aws:es:ap-south-1:xxxxxxx:domain/domainname/*"
}
]

{

"Version": "2012-10-17",

"Statement": [

{

"Sid": "AllowWriteOpenSearch",

"Effect": "Allow",

"Action": [

"es:ESHttpPost",

"es:ESHttpPut",

"es:ESHttpGet",

"es:ESHttpHead"

"Resource": "arn:aws:es:ap-south-1:xxxxxxx:domain/domainname/*"

}

]

3. Create Service account

Attach AWS IAM role to service account

serviceAccount:
  create: true
  name: fluent-bit
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/fluent-bit

serviceAccount:

create: true

name: fluent-bit

annotations:

eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/fluent-bit

4. Configure Fluent Bit Config values

    [SERVICE]
        Flush         5
        Log_Level     info
        Daemon        Off
        Parsers_File  parsers.conf
        HTTP_Server   On
        HTTP_Listen   0.0.0.0
        HTTP_Port     2020

    [INPUT]
        Name              tail
        Tag               kube.*
        Path              /var/log/containers/*.log
        Parser            docker
        DB                /var/log/flb_kube.db
        Mem_Buf_Limit     50MB
        Skip_Long_Lines   On
        Refresh_Interval  10

    [FILTER]
        Name                kubernetes
        Match               kube.*
        Kube_URL            https://kubernetes.default.svc:443
        Merge_Log           On
        Keep_Log            Off
        K8S-Logging.Parser  On
        K8S-Logging.Exclude Off

    [OUTPUT]
        Name                  opensearch
        Match                 kube.*
        Host                  search-my-opensearch-domain.ap-south-1.es.amazonaws.com
        Port                  443
        Index                 eks-logs
        AWS_Auth              On
        AWS_Region            ap-south-1
        tls                   On
        Suppress_Type_Name    On
        Logstash_Format       On
        Logstash_Prefix       eks-logs
        Retry_Limit           False

  parsers.conf: |
    [PARSER]
        Name        docker
        Format      json
        Time_Key    time
        Time_Format %Y-%m-%dT%H:%M:%S.%L
        Time_Keep   On

[SERVICE]

Flush 5

Log_Level info

Daemon Off

Parsers_File parsers.conf

HTTP_Server On

HTTP_Listen 0.0.0.0

HTTP_Port 2020

[INPUT]

Name tail

Tag kube.*

Path /var/log/containers/*.log

Parser docker

DB /var/log/flb_kube.db

Mem_Buf_Limit 50MB

Skip_Long_Lines On

Refresh_Interval 10

[FILTER]

Name kubernetes

Match kube.*

Kube_URL https://kubernetes.default.svc:443

Merge_Log On

Keep_Log Off

K8S-Logging.Parser On

K8S-Logging.Exclude Off

[OUTPUT]

Name opensearch

Match kube.*

Host search-my-opensearch-domain.ap-south-1.es.amazonaws.com

Port 443

Index eks-logs

AWS_Auth On

AWS_Region ap-south-1

tls On

Suppress_Type_Name On

Logstash_Format On

Logstash_Prefix eks-logs

Retry_Limit False

parsers.conf: |

[PARSER]

Name docker

Format json

Time_Key time

Time_Format %Y-%m-%dT%H:%M:%S.%L

Time_Keep On

5. Install aws-for-fluent-bit using Helm

Run the command below to install fluent bit using helm

helm upgrade --install aws-for-fluent-bit eks/aws-for-fluent-bit \
  --namespace logging \
  -f values.yaml

helm upgrade --install aws-for-fluent-bit eks/aws-for-fluent-bit \

--namespace logging \

-f values.yaml

6. Verify Fluent Bit pods

Run the command below to verify whether the pods are running or not

kubectl get pods -n logging

1	kubectl get pods -n logging

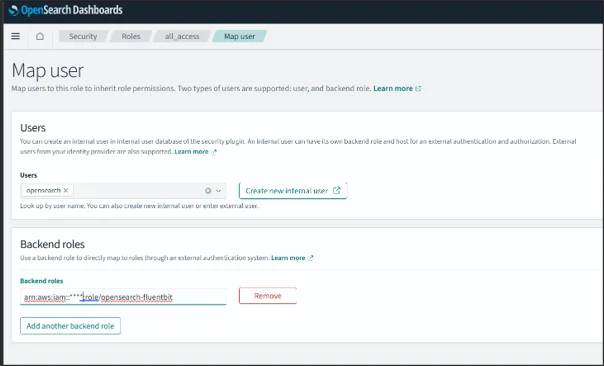

7. Configure in OpenSearch

Click on Settings -> Roles -> all_access -> Mapped Users -> Manage Mapping

Note: all_access is not suitable for production for production create dedicated AWS IAM role and allow only necessary write index permissions

In the backend role, add the ARN of the AWS IAM role you created earlier.

IRSA gives the Fluent Bit pod AWS IAM permission to call the Amazon OpenSearch Service endpoint. OpenSearch role mapping grants the AWS IAM role permission within the OpenSearch security plugin to write to the required index.

8. Create Index Pattern

Click on Settings -> Dashboard Management – > Index Pattern -> Create Index Pattern

Create an index pattern with eks-logs.

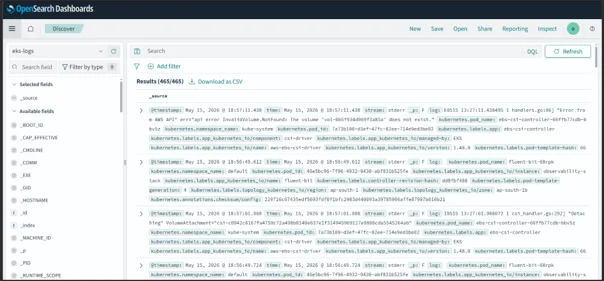

9. View Logs in OpenSearch Dashboard

Click Discover, then search eks-logs to see the logs from all the pods inside it.

Note:

If fine-grained access control is enabled in Amazon OpenSearch Service, only creating the AWS IAM role is not enough. The AWS IAM role used by Fluent Bit must also be mapped inside OpenSearch Dashboards.

Key Benefits:

All pod and container logs from the Amazon EKS cluster are available in one centralized location. This makes it easier to troubleshoot application issues without checking logs pod by pod using kubectl logs
With OpenSearch Dashboards, teams can quickly search logs by namespace, pod name, container name, error message, or timestamp. This helps reduce the time required to identify and fix production issues.
This setup can be extended with retention policies, index lifecycle management, alerts, and fine-grained access control to make it suitable for production workloads.

Conclusion

Sending logs from Amazon EKS to Amazon OpenSearch Service provides a reliable and centralized logging solution for Kubernetes workloads. By using Fluent Bit with Helm, the deployment becomes easier to manage, upgrade, and maintain across different environments.

Drop a query if you have any questions regarding Amazon EKS, and we will get back to you quickly.

Making IT Networks Enterprise-ready – Cloud Management Services

Accelerated cloud migration
End-to-end view of the cloud environment

Get Started

About CloudThat

CloudThat is an award-winning company and the first in India to offer cloud training and consulting services worldwide. As an AWS Premier Tier Services Partner, AWS Advanced Training Partner, Microsoft Solutions Partner, and Google Cloud Platform Partner, CloudThat has empowered over 1.1 million professionals through 1000+ cloud certifications, winning global recognition for its training excellence, including 20 MCT Trainers in Microsoft’s Global Top 100 and an impressive 14 awards in the last 9 years. CloudThat specializes in Cloud Migration, Data Platforms, DevOps, Security, IoT, and advanced technologies like Gen AI & AI/ML. It has delivered over 750 consulting projects for 850+ organizations in 30+ countries as it continues to empower professionals and enterprises to thrive in the digital-first world.

FAQs

1. Can we send logs from only selected namespaces?

ANS: – Yes. Fluent Bit filters can be configured to include or exclude logs based on namespace, pod name, labels, or log content.

2. Does Fluent Bit collect logs from all pods?

ANS: – Yes. By default, Fluent Bit reads container logs from:

/var/log/containers/*.log

1	/var/log/containers/*.log

This allows it to collect logs from all pods running on the Amazon EKS worker nodes.
